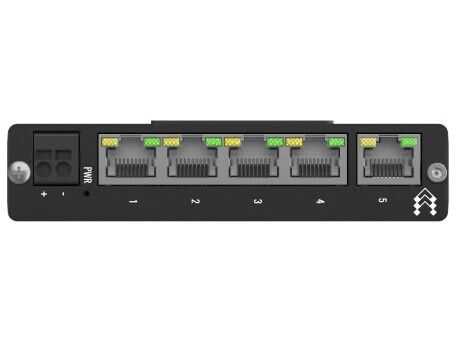

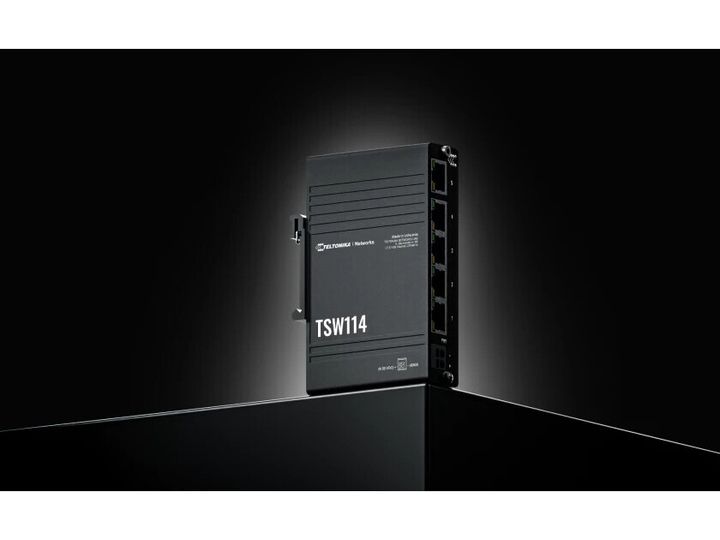

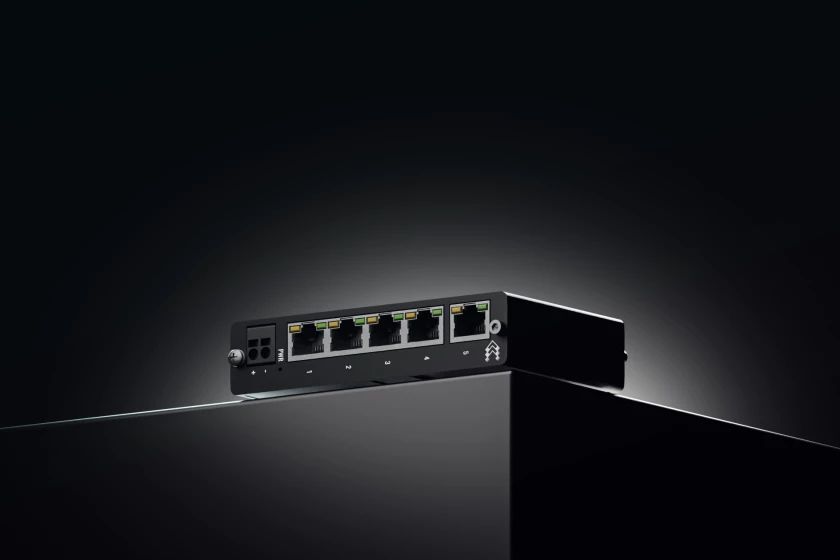

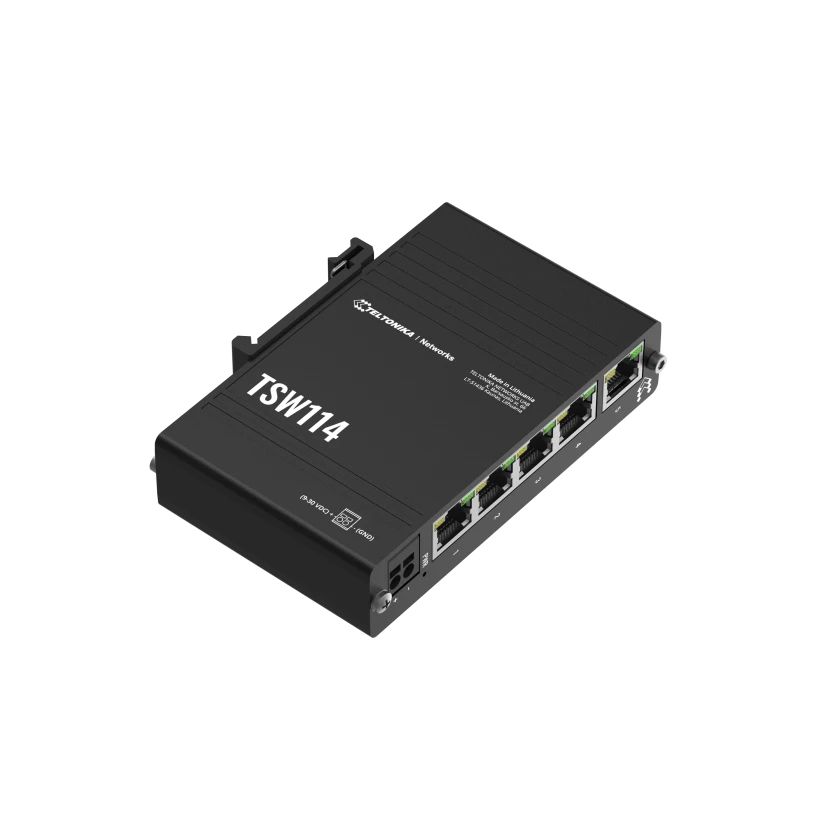

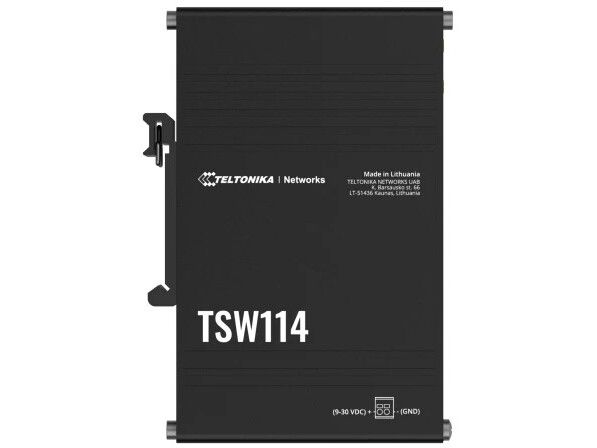

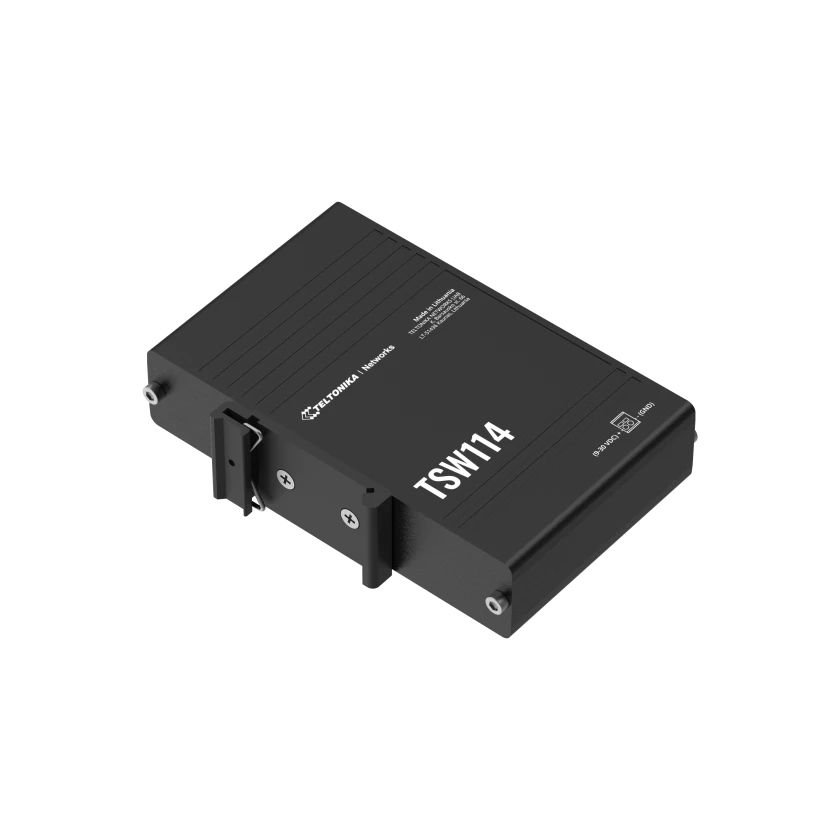

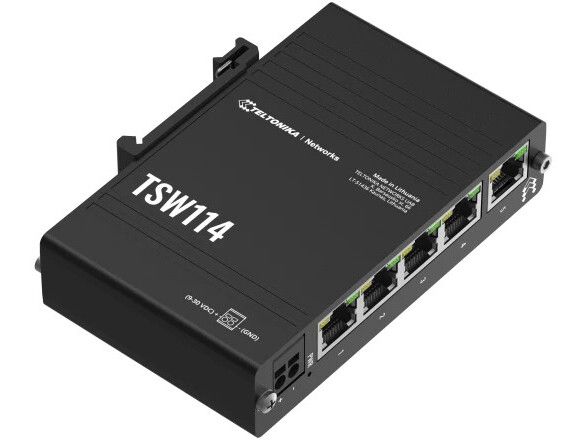

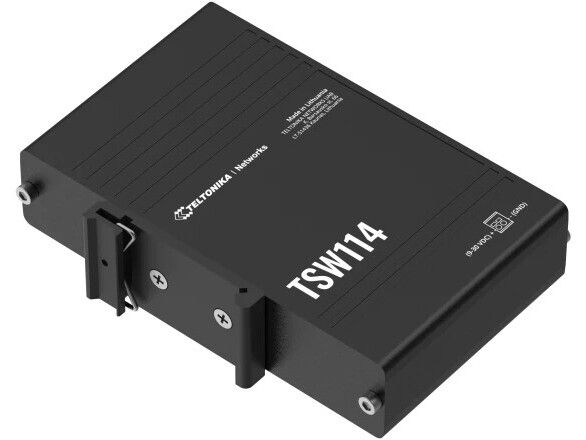

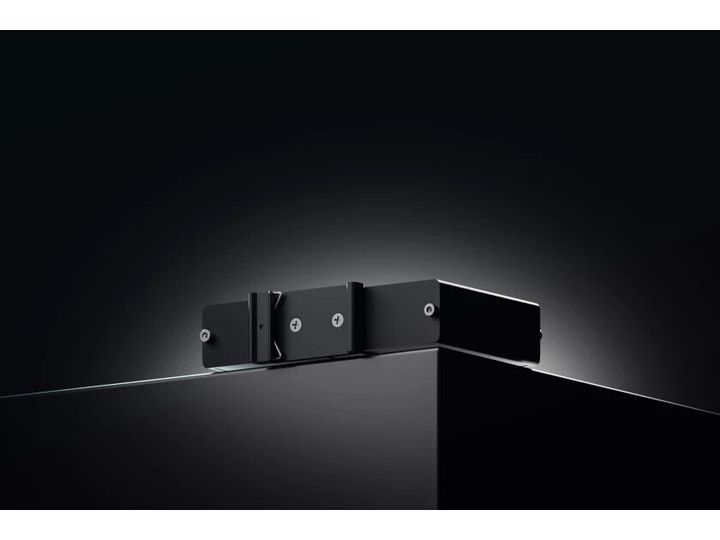

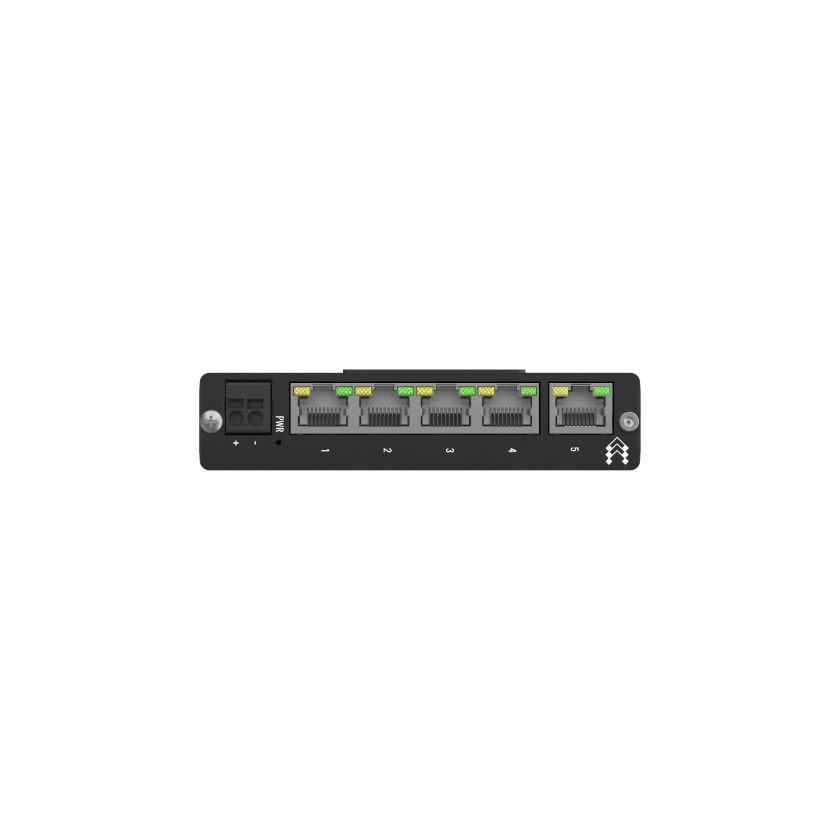

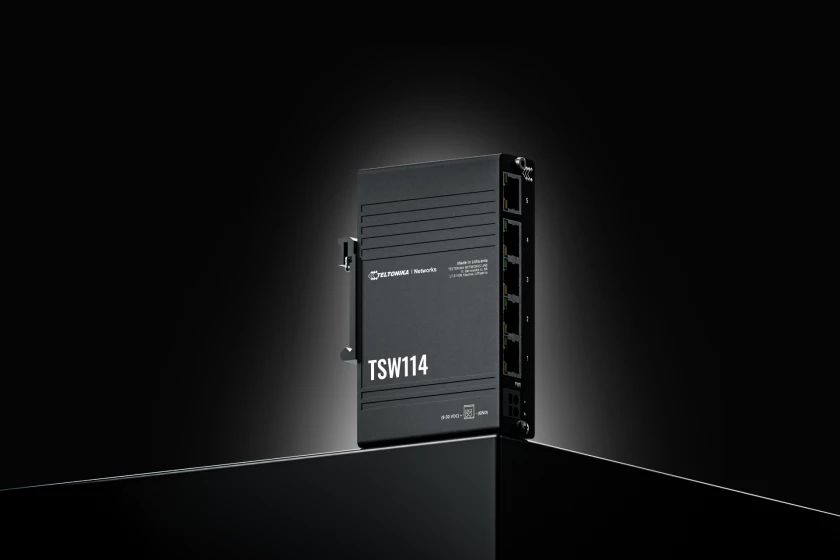

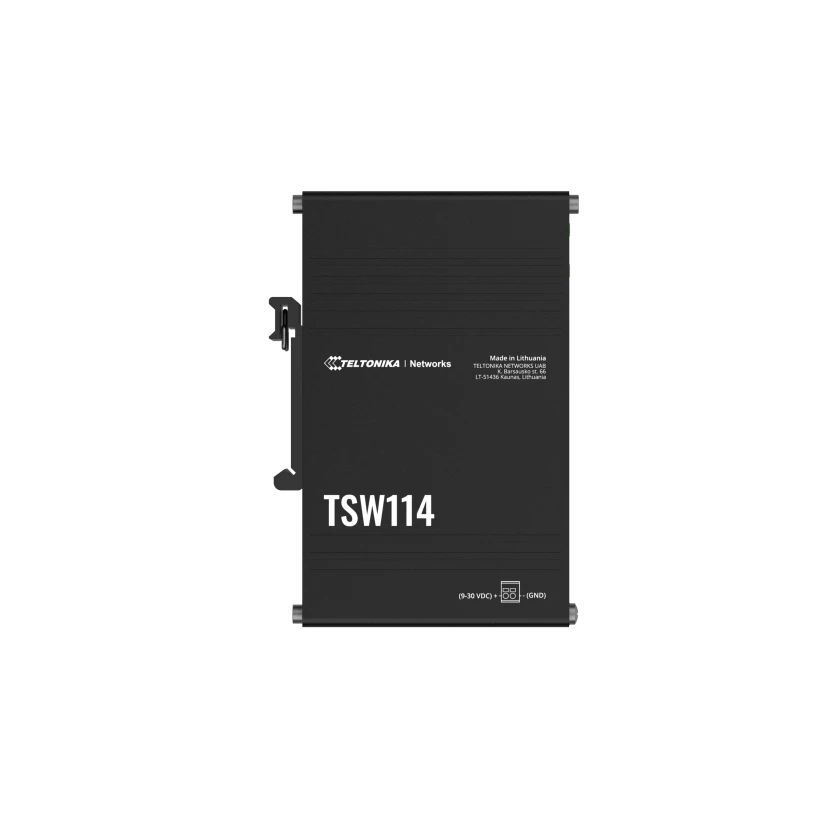

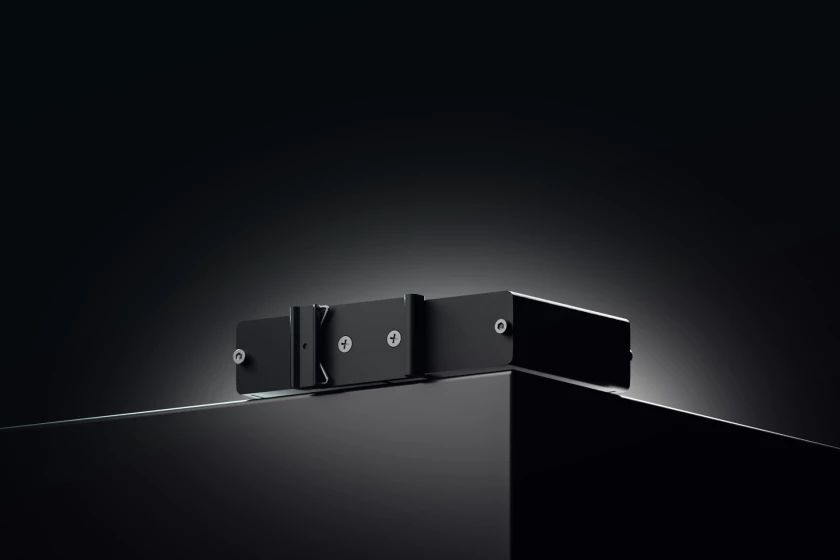

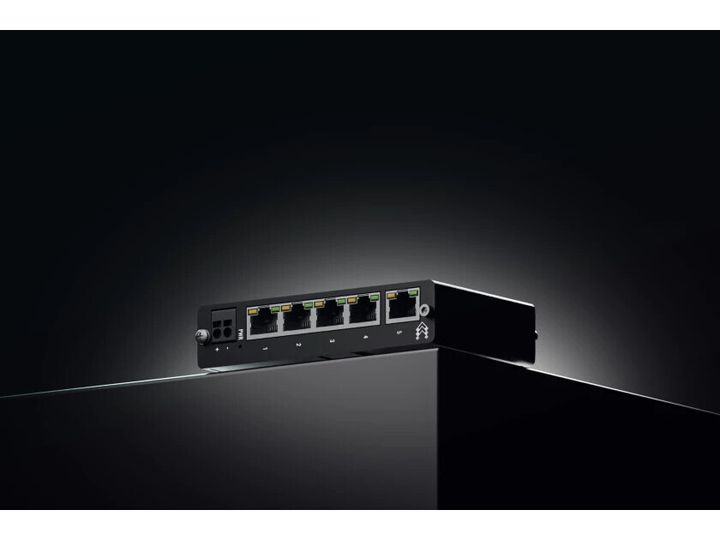

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets. Teltonika TSW114000000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Wall mountable
Produktbeskrivelse
Teltonika TSW114 - switch - 5 porte - ikke administreret
Enhedstype
Switch - 5 porte - ikke administreret
Undertype
Gigabit Ethernet
Porte
5 x 10/100/1000
Power Over Ethernet (PoE)
Passive PoE
Præstation
Ikke-blokerende båndbredde: 10 Gbps
Kapacitet
Pakkebufferstørrelse: 128 KB
MAC adresse table størrelse
2K indtastningshukommelse
Jumborammesupport
9216 byte
Egenskaber
Aluminiumskabinet, auto-uplink (auto MDI/MDI-X)
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Effekt
DC 9 - 30 V
Dimensioner (B x D x H)
11.31 cm x 8.05 cm x 2.74 cm
Vægt
174 g
Generelt
Enhedstype
Switch - 5 porte - ikke administreret
Pakningstype
DIN monterbar på skinne, væg-monterbar
Undertype
Gigabit Ethernet
Porte
5 x 10/100/1000
Power Over Ethernet (PoE)
Passive PoE
Præstation
Ikke-blokerende båndbredde: 10 Gbps
Kapacitet
Pakkebufferstørrelse: 128 KB
MAC adresse table størrelse
2K indtastningshukommelse
Jumborammesupport
9216 byte
Egenskaber
Aluminiumskabinet, auto-uplink (auto MDI/MDI-X)
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Statusindikatorer
Strøm, LAN
Ekspansion / Konnektivitet
Interface
5 x RJ-45
Effekt
Nødvendig spænding
DC 9 - 30 V
Strømforbrug ved drift
2.3 Watt
Diverse
Overensstemmelsesstandarder
IP30
Mål og vægt
Bredde
11.31 cm
Dybde
8.05 cm
Højde
2.74 cm
Vægt
174 g
Mål & vægt (forsendelse)
Bredde ved forsendelse
17.3 cm
Dybde ved forsendelse
14.8 cm
Højde ved forsendelse
7.1 cm
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
10 - 90 % (ikke-kondenserende)
