The PSF-400B from its layout may remind on “fore gone” ATX standards but, compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
Dedicated majorly to the 19” IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.
Produktbeskrivelse

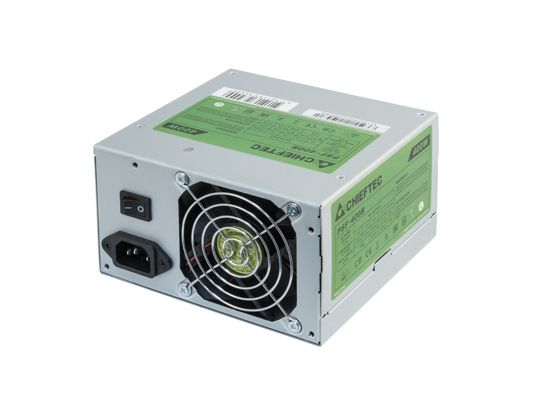

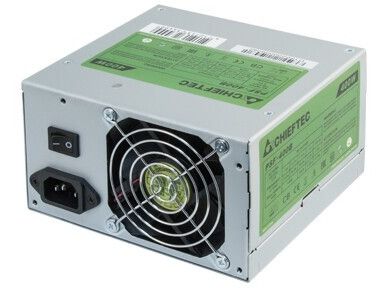

Chieftec Smart Series PSF-400B - strømforsyning - 400 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
80 PLUS certificering
80 PLUS Bronze
Indgangspænding
AC 110-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
400 Watt
Output Current
+5V - 15 A +3.3V - 16 A +12V1 - 30 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 6 pin PCI Express-strøm 1 x 4-PIN mini-strømforsyningsforbinder 4 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm
Kølesystem
80 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.7 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 110-240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 6 pin PCI Express-strøm 1 x 4-PIN mini-strømforsyningsforbinder 4 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
400 Watt
Output Current
+5V - 15 A +3.3V - 16 A +12V1 - 30 A -12V - 0.3 A +5VSB - 2.5 A
Effektivitet
85%
80 PLUS certificering
80 PLUS Bronze
Diverse
Kølesystem
80 mm ventilator
Egenskaber
Overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, blæserhastighedsstyring
Overensstemmelsesstandarder
TUV, CB, RoHS, EuP Ready
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.7 cm
