Traco Power TEN 5-2411WI, 20.3 mm, 10.2 mm, 31.8 mm, 17 g

Item no.: [1708190] | Manufacturer: TracoPower | Model no.: TEN 5-2411WI | EAN: 2050000025921
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping 15,00 - GLS
EUR 50,55
ex. VAT 40,44
Total incl. delivery 65,55
Read further specifications and description

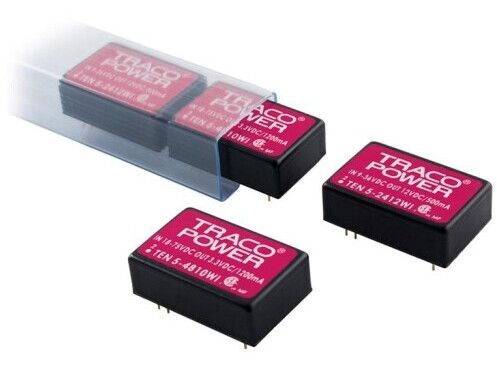

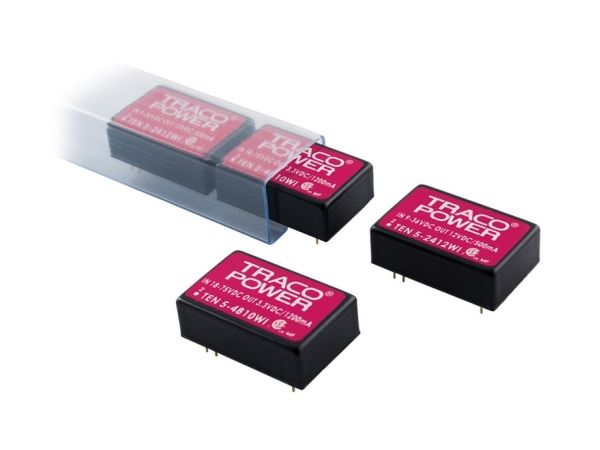

The TEN 5WI series is a family of high performance dc-dc converter modules with 5 W output power, featuring ultra wide input voltage ranges of 9 - 36 VDC or 18 - 75 VDC. They come in a shielded DIP-24 metal package with industry-standard footprint. A high efficiency allows –40°C to +70°C operation ambient temperatures at full load. Standard features include over voltage protection and continuous short circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication, instrumentation and industrial electronics, everywhere where a wide input voltage range is required
