MEAN WELL LPV-100-24, White, 90 - 264 V, 47 - 63 Hz, 190 mm, 37 mm, 52 mm
Item no.: [1720458] | Manufacturer: Mean Well | Model no.: LPV-100-24 | EAN: 1014072650000
In stock
In stock, order before 5 PM and we ship today (weekdays) More info
Shipping 15,00 - GLS
SPECIAL OFFER
There are 1 in stock
The current price is valid as long as the local stock lasts
EUR
19,02
ex. VAT 15,22
Total incl. delivery
34,02
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
- Constant voltage design - Universal AC input / Full range - Fully encapsulated with IP67 level (Note.8) - Withstand 300VAC surge input for 5 seconds - Protections: Short circuit / Overload / Over voltage - Fully isolated plastic case - Cooling by free air convection - 100% full load burn-in test - Low cost, high reliability - Suitable for LED lighting and moving sign applications(Note 7.) - 2 years warranty?
Produktbeskrivelse

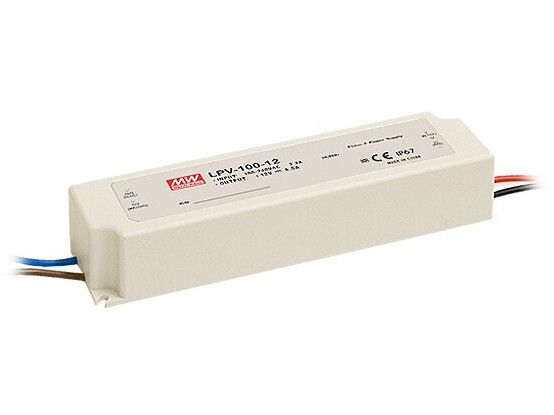

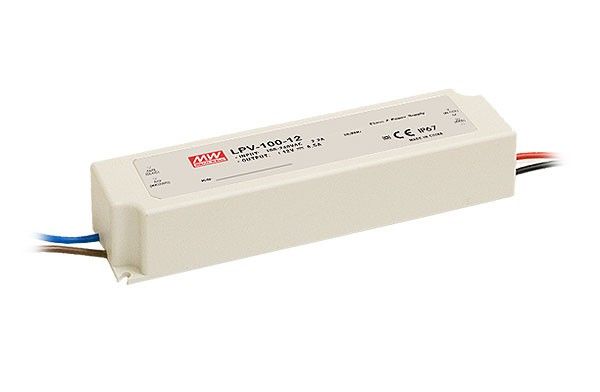

Mean Well LPV-100-24 - LPV-100 Series - LED-driver - 100.8 Watt
Produkttype
LED-driver
Dimensioner (B x D x H)
5.2 cm x 19 cm x 3.7 cm
Vægt
640 g
Nødvendig spænding
AC 90 - 264/ DC 127 - 370 V (47 - 63 Hz)
Forsynet spænding
24 V ± 5%
Max. elektrisk strøm
4.2 A
Strømforsyning
100.8 Watt
Producentgaranti
2 års garanti
Generelt
Produkttype
LED-driver
Bredde
5.2 cm
Dybde
19 cm
Højde
3.7 cm
Vægt
640 g
Strømenhed
Nødvendig spænding
AC 90 - 264/ DC 127 - 370 V (47 - 63 Hz)
Forsynet spænding
24 V ± 5%
Strømforsyning
100.8 Watt
Max. elektrisk strøm
4.2 A
Egenskaber
Overbelastningsbeskyttelse, kortslutningsbeskyttelse, overspændingsbeskyttelse, strømstødsbeskyttelse, kan ikke dæmpes
Diverse
Overensstemmelsesstandarder
EN55024, EN 60950-1, IP64, IP67, IP66, IP65, IP42, IP21, IP40, IP20, IP30, EAC, IP50, MIL-HDBK-217F, EN 61000-4-2:2009, EN 61000-4-11:2004, RoHS 2011/65/EU, EN 61000-3-3:2013, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-8:2010, cURus, EN 61000-4-6:2014, EN 61000-4-5:2014, LVD 2014/35/EU, Directive 2014/30/EU, EN 61000-4.4:2012, CISPR 32 Class B, ENV 50204, EN 61000-3-2:2014 Class A, EN 55032:2015 Class B, UL 8750, SJ/T 11364-2014, CSA C22.2 No. 250.13-12, BIS IS15885, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Producentgaranti
Service & Support
Begrænset garanti - 2 år
