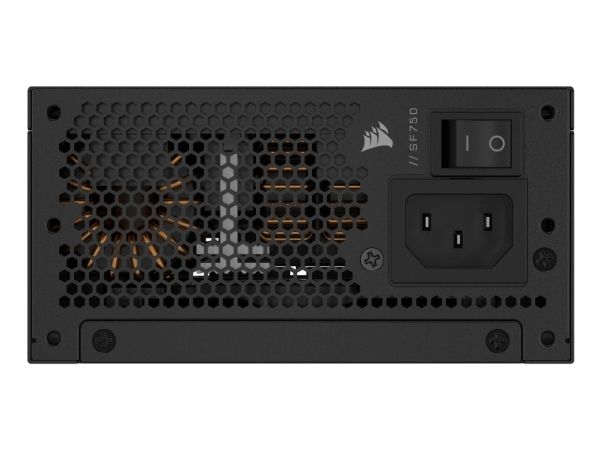

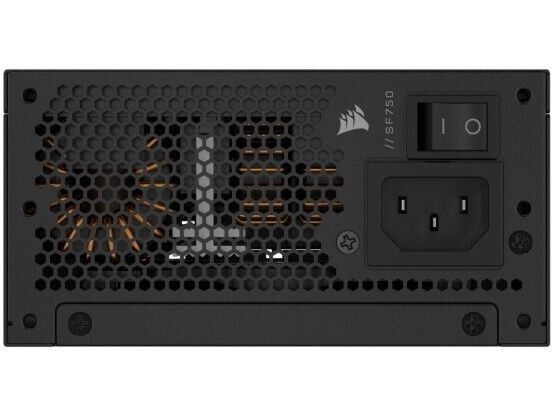

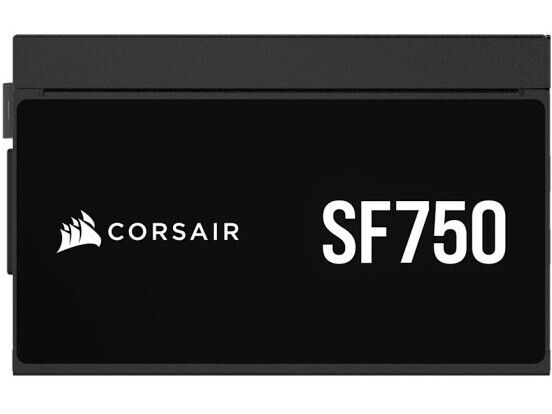

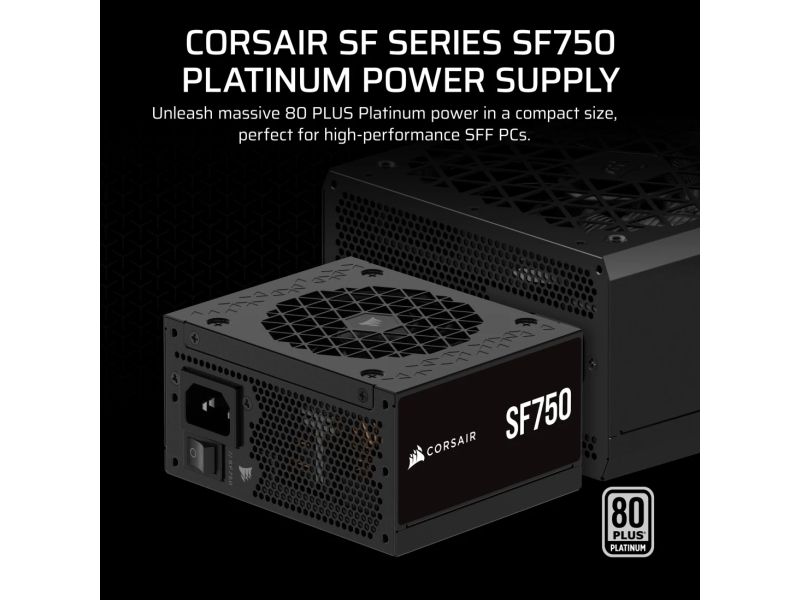

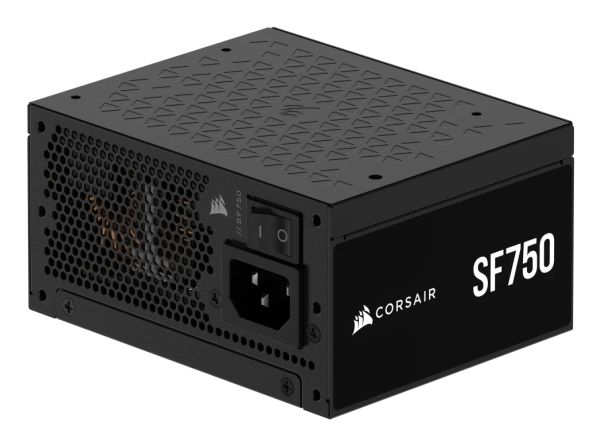

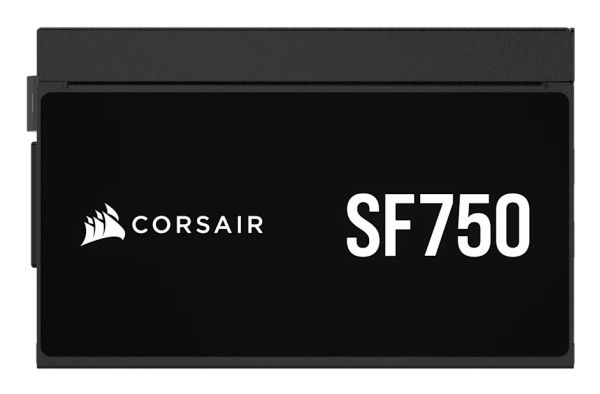

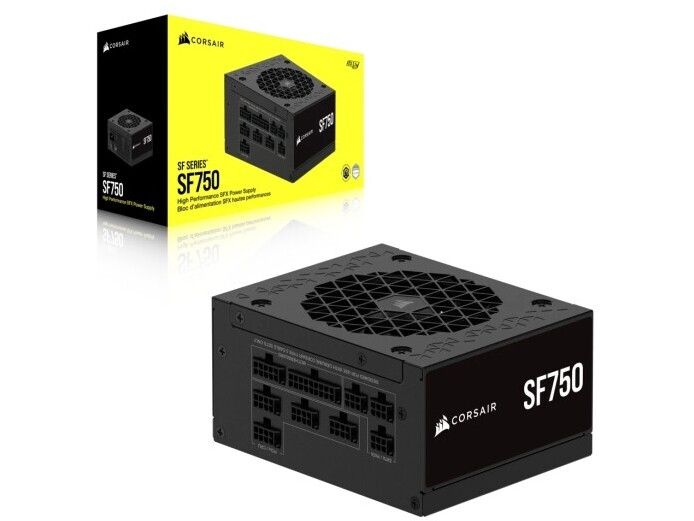

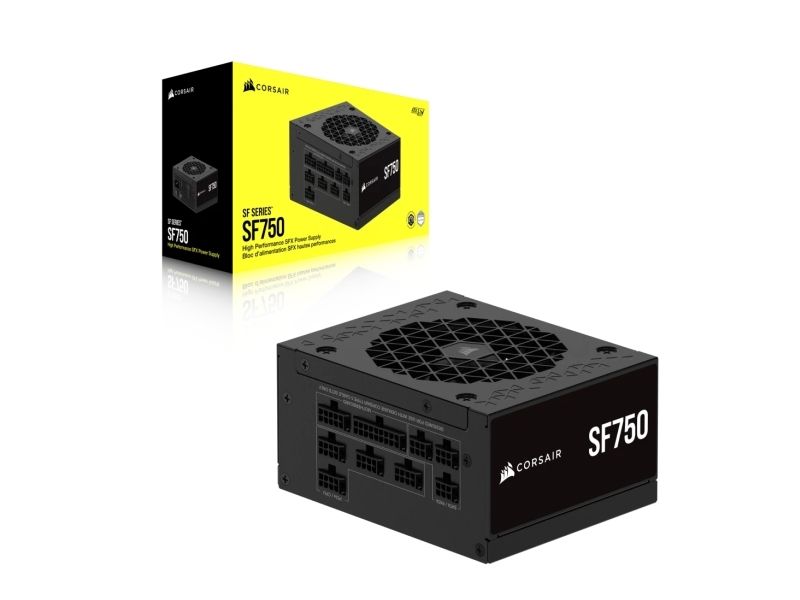

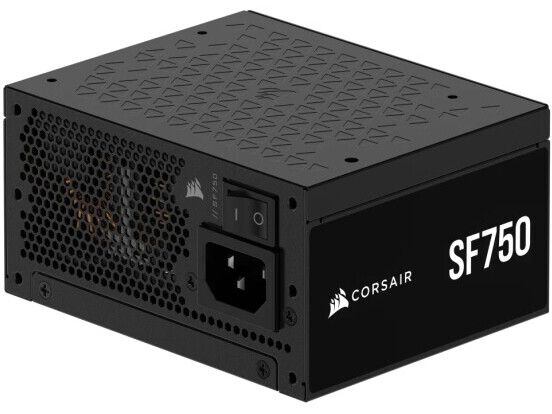

The CORSAIR SF750 80 PLUS Platinum SFX Power Supply is an extraordinarily power-dense PSU, ready to power the most cutting-edge small form factor PCs with 750 continuous watts.
Produktbeskrivelse
CORSAIR SF Series SF750 - strømforsyning - 750 Watt
Enhedstype
Strømforsyning - intern

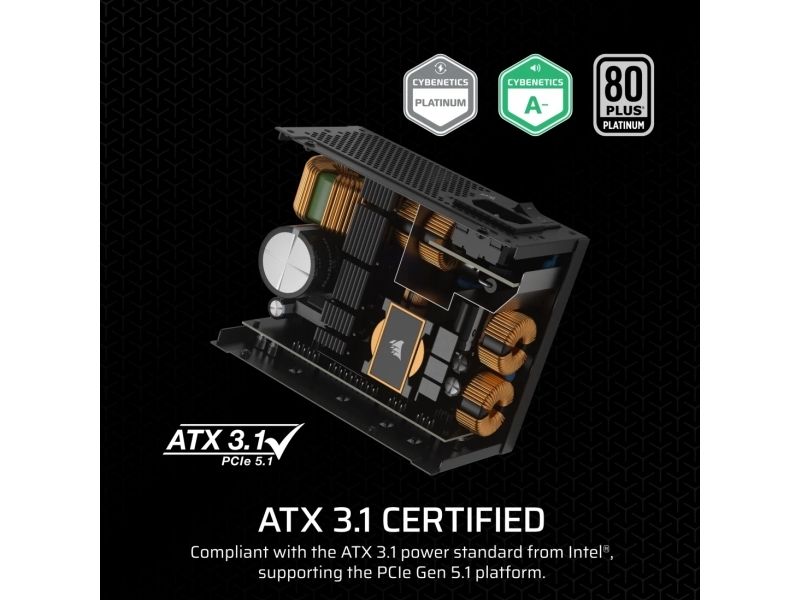

Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Platinum
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
750 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.5 A +5VSB - 3 A

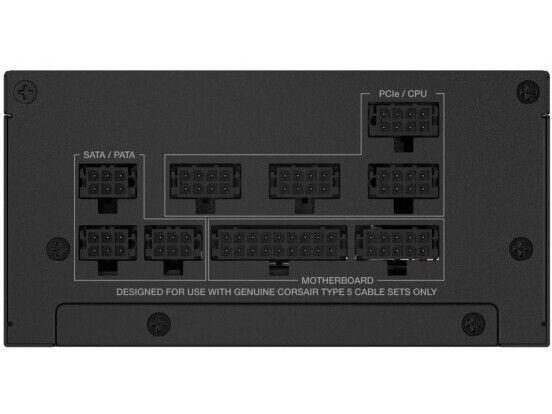

Output-stikforbindelser
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 12VHPWR
Modulær Kabel Administration
Ja
Kølesystem
92 mm blæser
Udstyr inkluderet
Kabelbånd, SFX to ATX bracket
Dimensioner (B x D x H)
12.5 cm x 10 cm x 6.35 cm
Producentgaranti
7 års garanti
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
SFX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
47 - 63 Hz

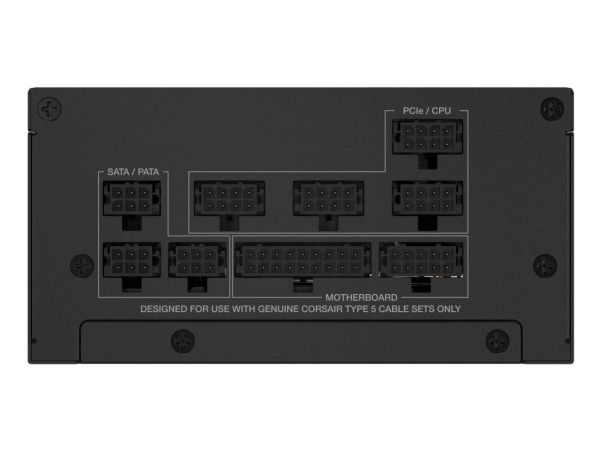

Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 12VHPWR
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
750 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.5 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Udstyr inkluderet
Kabelbånd, SFX to ATX bracket
Medfølgende ledninger

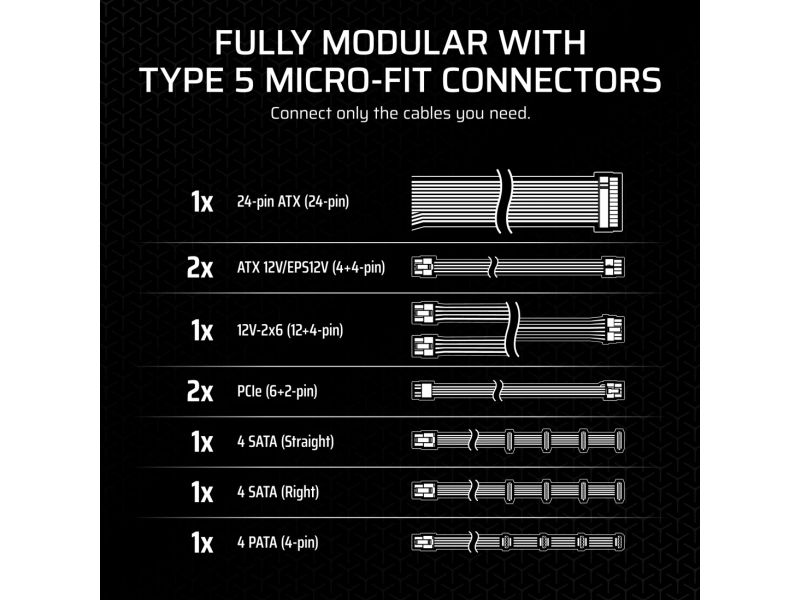

AC-strømkabel Strøm 24 pin ATX modulært kabel 30 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 40 cm 2 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 40 cm 16-pin 12VHPWR strøm modulær kabel 40 cm 2 x strøm 15 pin SATA-kabel 45.5 cm 4 pin strøm modulært kabel 33 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
92 mm blæser
Egenskaber

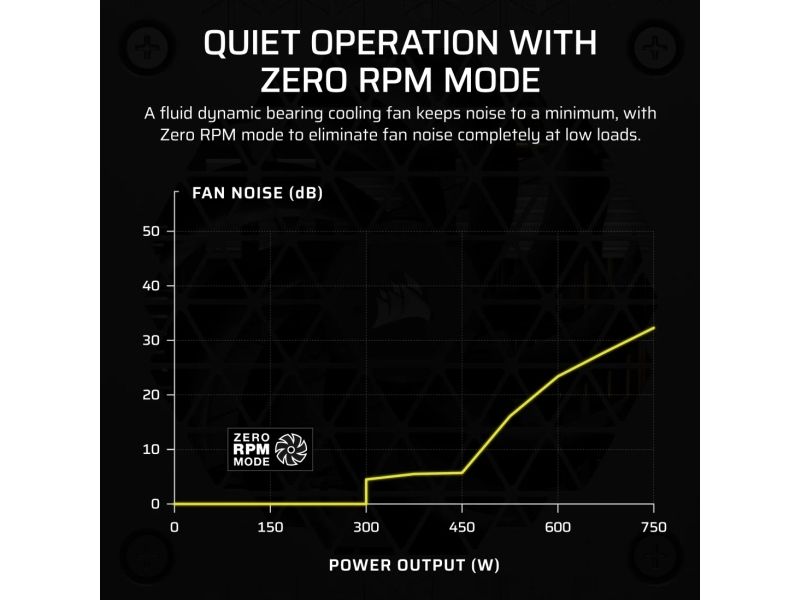

Beskyttelse mod overophedning, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, Zero RPM-blæsermodus, køleblæser til flydende dynamisk leje, fuld modulær, Cybenetics Platinum
Overensstemmelsesstandarder
EMC, RoHS, UKCA
Producentgaranti
Service & Support
Begrænset garanti - 7 år
Miljømæssige parametre
Maks. driftstemperatur
50 °C
Mål og vægt
Bredde
12.5 cm
Dybde
10 cm
Højde
6.35 cm
