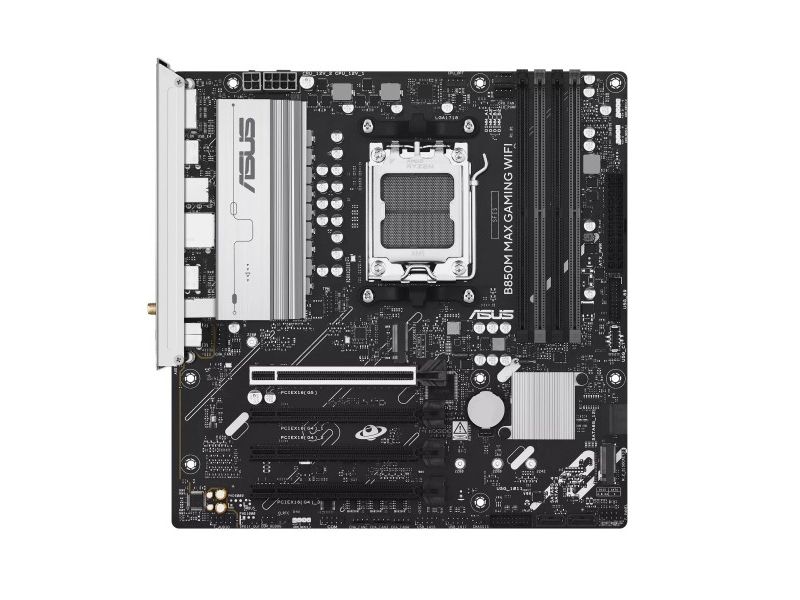

ASUS B850M MAX GAMING WIFI Bundkort - AMD B850 - AMD AM5 socket - DDR5 RAM - Micro-ATX

Item no.: [24340476] | Manufacturer: ASUS | Model no.: 90MB1LL0-M0EAY0 | EAN: 4711636062343

In stock

In stock, order before 5 PM and we ship today (weekdays) More info

There are 3 in stock

The current price is valid as long as the local stock lasts

EUR 188,38

ex. VAT 150,70

Total incl. delivery 203,38

Produktbeskrivelse	ASUS ROG STRIX B850-G GAMING WIFI - bundkort - micro ATX - Socket AM5 - AMD B850
Produkttype	Bundkort - micro ATX
Chipsættype	AMD B850
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse	256 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte	2 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	AMD B850
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Understøttet RAM
Maks. størrelse	256 GB
Teknologi	DDR5
Bus Clock	8000 MT/s (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC, on-die ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	AMD EXPO-teknologi, dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC4080
Overensstemmelsesstandarder	High Definition Audio, DTS Sound Unbound
LAN
Netværk controller	Intel I225-V
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 2 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -stikforbindelser: 1 x M.2 PCIe 4.0 -stikforbindelser: 3 x M.2
Interface	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x USB-C 3.2 Gen 2 1 x SPDIF-ud 1 x - mini-jack 1 x audio linje-ud - mini-jack 2 x antenne
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber	ASUS OptiMem II, SupremeFX Shielding teknologi, Savitech SV3H712 forstærker, BIOS FlashBack-knap, Water Pump Header, jack retasking, audio jack detektions teknologi, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, M.2 kølelegeme, VRM kølelegemedesign, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, præmonteret I/O-skjold, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 16+2+2 Phase Power Design, 80 A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP)
Diverse
Udstyr inkluderet	ASUS Wi-Fi Q-antenna, kabelbånd, M.2 Q-Latch, ROG-nøglekæde, STRIX-mærkater, 3 x M.2 gummipakning, M.2 skruepakke
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	ROG CPU-Z, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ROG GameFirst II, ASUS AI Advisor, ASUS DriverHub, AIDA64 Extreme (60 dages prøvetid), HWiNFO, ASUS GlideX, TurboV Core, Adobe Creative Cloud (gratis prøve), Norton 360 for Gamers (60 dages prøvetid), WinRAR (40 days trial)
Bredde	24.4 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4711636062343
SKU:	90MB1LL0-M0EAY0
SKU:	AC90MB1LL0-M0EAY0
SKU:	B850M MAX GAMING WIFI

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
