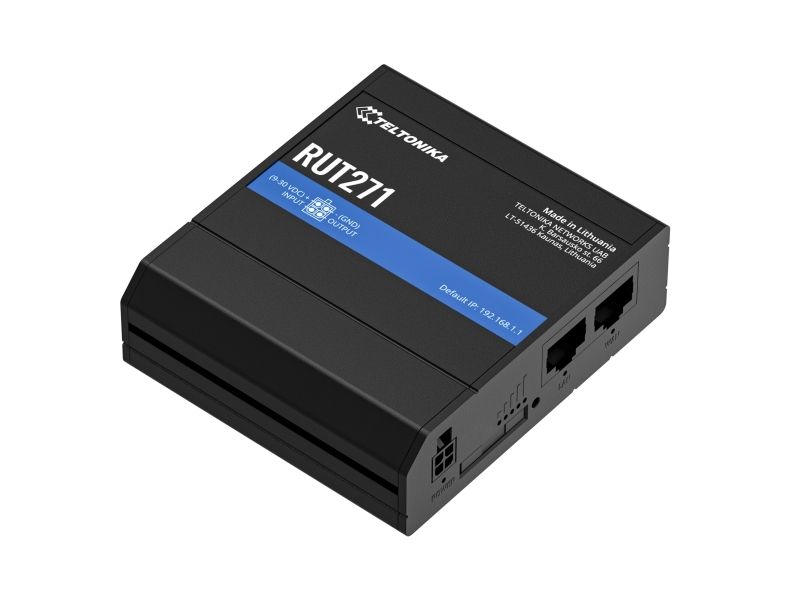

Teltonika RUT271, Cellular network router, Black, Aluminium, Plastic, DIN-rail/Wall mounting, Industrial, Fast Ethernet

Item no.: [24488118] | Manufacturer: Teltonika | Model no.: RUT271 000000 | EAN: 4779051842278

In stock

In stock, order before 5 PM and we ship today (weekdays) More info

There are 25+ in stock

The current price is valid as long as the local stock lasts

EUR 257,77

ex. VAT 206,22

Total incl. delivery 272,77

Produktbeskrivelse	Teltonika RUT271 - trådløs router - WWAN - Wi-Fi - 4G, 5G - DIN monterbar på skinne, væg-monterbar, overflademonterbar
Enhedstype	Trådløs router - mesh - trådløs mobilmodem - 2-port switch (integreret)
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Mobilprotokol	5G Sub-6 Ghz, 4G LTE
Generation	4G, 5G
Mobilbånd	LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79
Antal WAN porte	1
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, VXLAN
Protokol til fjernadministration	TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC
VoIP-protokoller	H.323, SIP
Egenskaber	WAN failover, 3GPP Release 17, USSD support, fler-PDN, båndadministration, SIM PIN-administration, hvidliste, sort liste, auto APN, LAN-gennemløb, Tilgangspunkt, drift, 802.1x autentificering, ESSID stealth tilstand, Wireless Mesh-support, Fast Roaming, BSS overgangsstyring, RRM, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), statisk routing, dynamisk routing, PPP, UPnP, WOL, planlæg genstart, DHCP-understøttelse, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, portbaseret VLAN, OpenVPN kryptering, GRE tunneling, IPSec passthrough, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, MQTT-support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED-statusindikatorer, nulstillingsknap, aluminiumskabinet, modsat polarietsbeskyttelse, strømstødsbeskyttelse, papkasse emballage
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Effekt	DC 9 - 30 V
Dimensioner (B x D x H)	8.3 cm x 7.4 cm x 2.5 cm
Vægt	130 g

Generelt
Enhedstype	Trådløs router - mesh - 2-port switch (integreret)
Pakningstype	DIN monterbar på skinne, væg-monterbar, overflademonterbar
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, 5G, LTE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Kapacitet	Samtidige tilslutninger: 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, ICMP/IP, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, DHCP, Telnet, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP, VXLAN
Protokol til fjernadministration	TLS, SSH, SMPP, SNMP, MQTT, JSON-RPC
Krypterings algoritme	WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS, PKCS#12, PMF, MODBUS, 128-bit AES-CBC, 192-bit AES-CBC, 256-bit AES-CBC, IKEv1, IKEv2
Autentificeringsmetode	X.509 certifikater, TACACS+, RADIUS
Mesh-netværk	Ja
Egenskaber	WAN failover, 3GPP Release 17, USSD support, fler-PDN, båndadministration, SIM PIN-administration, hvidliste, sort liste, auto APN, LAN-gennemløb, Tilgangspunkt, drift, 802.1x autentificering, ESSID stealth tilstand, Wireless Mesh-support, Fast Roaming, BSS overgangsstyring, RRM, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), statisk routing, dynamisk routing, PPP, UPnP, WOL, planlæg genstart, DHCP-understøttelse, QoS, SQM, DDNS, AP hotspot, SSHFS support, DDoS Protection, SYN Flooding, portbaseret VLAN, OpenVPN kryptering, GRE tunneling, IPSec passthrough, DMVPN, SSTP-klient instanssupport, ZeroTier VPN-klient support, WireGuard, Tinc-kryptering, MQTT-support, DNP3 station, DNP3 outstation, DLMS support, FOTA, Teltonika RMS, TR-069 Remote Management, LED-statusindikatorer, nulstillingsknap, aluminiumskabinet, modsat polarietsbeskyttelse, strømstødsbeskyttelse, papkasse emballage
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, SSL v3, IP30, FCC, ISED, CB, WEEE
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	32 MB
Statusindikatorer	Forbindelsesstatus, signalstyrke, LAN, strøm
Kommunikationer
Type	Trådløs mobilmodem
Mobilprotokol	5G Sub-6 Ghz, 4G LTE
Generation	4G, 5G
Mobilbånd	LTE B34, LTE B38, LTE B39, LTE B40, LTE B41, LTE B42, LTE B43, LTE B48, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B18, LTE B19, LTE B20, LTE B25, LTE B26, LTE B28, LTE B30, LTE B66, LTE B70, LTE B71, 5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5g n70, 5G n71, 5G n77, 5G n78, 5G n79
IP-telefoni
VoIP-protokoller	H.323, SIP
Ekspansion / Konnektivitet
Interface	WAN: 1 x 10Base-T/100Base-TX - RJ-45 LAN: 1 x 10Base-T/100Base-TX - RJ-45 1 x DI 1 x DO Antenne: 2 x SMA - mobil Antenne: 1 x RP-SMA - Wi-Fi
Ekspansionsåbninger	1 (total) / 1 (fri) x Mini-SIM
Antenne
Antenne	Aftagelig eksternt
Antal antenner	3
Effekt
Strømenhed	Ekstern strømforsyning - 9 Watt
Nødvendig spænding	DC 9 - 30 V
Strømforbrug ved drift	1.5 Watt
Diverse
Udstyr inkluderet	2 x 5G antenner, WiFi-antenne, SIM-kortadaptersæt, strømadapter
Medfølgende ledninger	1 x netværkskabel - 1.5 m
Programmer / Systemkrav
Med OS	RutOS
Med software	Web UI
Mål og vægt
Bredde	8.3 cm
Dybde	7.4 cm
Højde	2.5 cm
Vægt	130 g
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	4779051842278
EAN:	4779051841738

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
