The item is in a remote warehouse, delivery time is 5-7 business days. More info
Shipping 15,00 - GLS
EUR
75,39
ex. VAT 60,31
Total incl. delivery
90,39
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

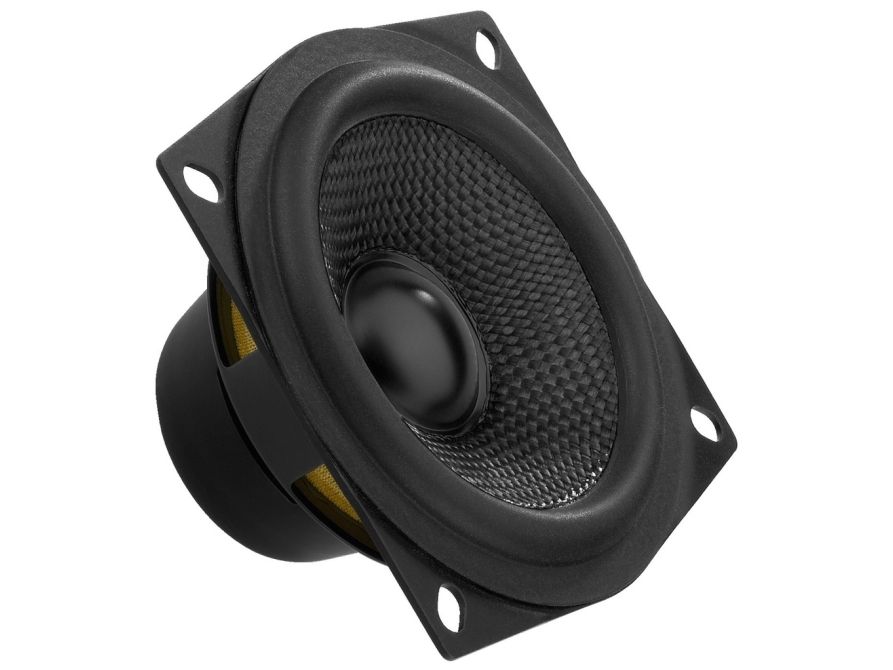

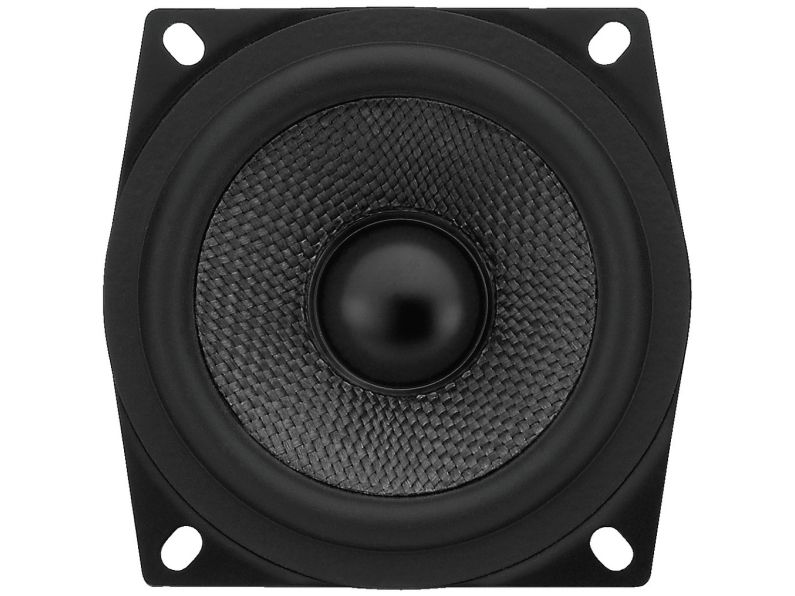

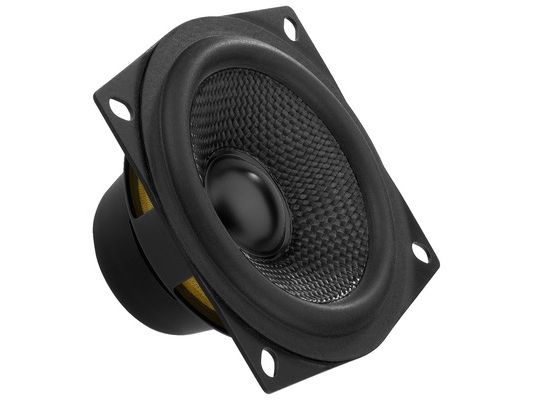

- Well dampened Kevlar cone of extra low weight - Drive system with full air ventilation - High-quality NEODYMIUM magnet system with double magnet - Specially developed basket also for multiple arrangements - High efficiency - Small speakers for background PA applications or e.g. rear speakers in home cinema systems - Suitable for applications from mid-high range speakers or full range midrange speakers in high-end hi-fi speaker systems to multiple arrangements in column speakers
Type
Full range speaker driver
RMS rated power
20 W
Shape
Round
Peak Music Power Output (PMPO)
50 W
Impedance
4 O
Frequency range
3 - 17000 Hz
Sensitivity
87 dB
Product colour
Black
Suspension compliance (Cms)
0.84 mm/N
Moving mass (Mms)
2.63 g
Resonance frequency (Fs)
105 Hz
Mechanical Q-factor (Qms)
9.35
Electrical Q-factor (Qes)
0.39
Total Q-factor (Qts)
0.42
Volume Acoustic Compliance (VAS)
1.06 L
DC resistance (Re)
3.55 O
Force factor (Bl)
3.91
Voice coil inductance (Le)
0.5 mH
Peak excursion (Xmax)
2 mm
Effective piston area (Sd)
30 cm²
Operating temperature (T-T)
0 - 40 °C
Driver size (W x H)
80.5 x 42 mm
Weight
150 g
Quantity per pack
1 pc(s)
The item is known under the following item numbers in our system
EAN:
4007754230819
SKU:
SPH-30X/4SW
