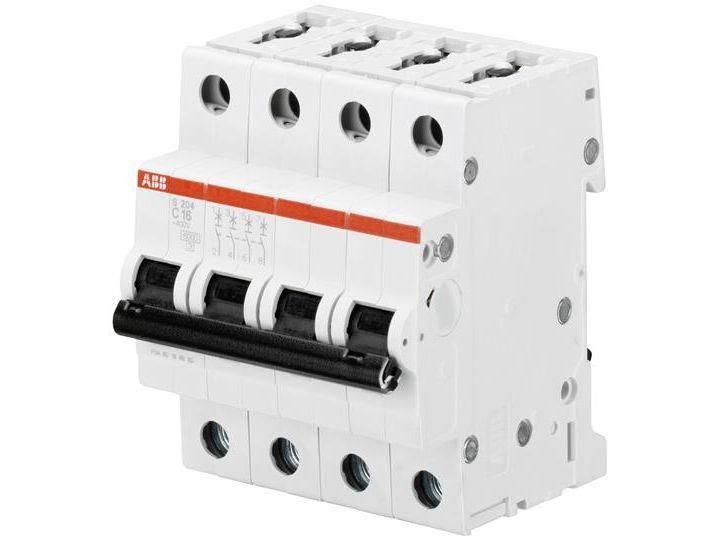

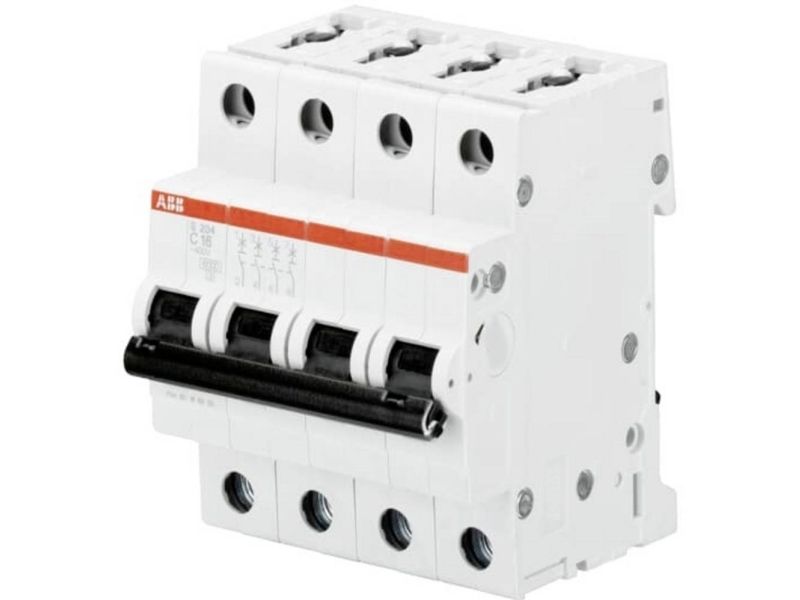

ABB 2CDS254001R0634, Miniature circuit breaker

Item no.: [7226501] | Manufacturer: ABB | Model no.: 2CDS254001R0634 | EAN: 4016779551113 | UNSPSC.: 39121603 | EL-nr.: 0422217921
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info

Shipping 15,00 - GLS
EUR 103,33
ex. VAT 82,66
Total incl. delivery 118,33
Read further specifications and description

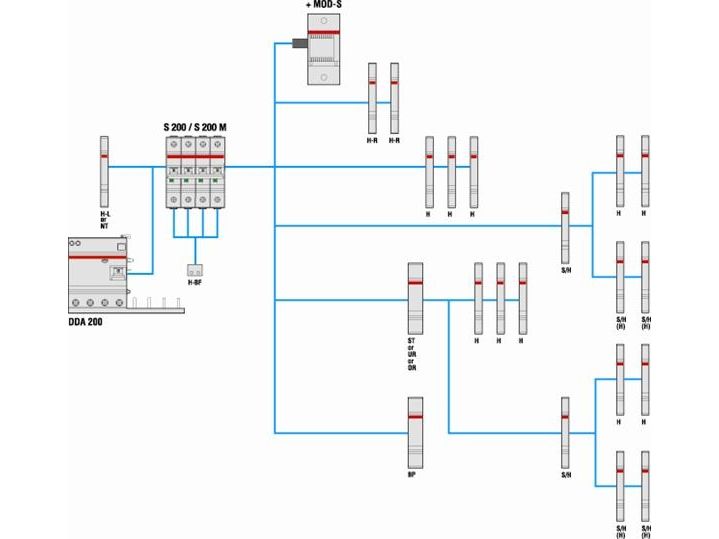

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
